In this article, you'll learn how to add printers to allow users to authenticate.
Authentication Methods
|
User and password |
In this form of authentication, the user must enter their domain credentials. |
|---|---|
|
PIN and/or Secure PIN |
In this form of authentication, the user must enter their PIN code and/or PIN and Secure PIN, configured in NDD Print Portal 360. |
|
Physical identifier |
In this form of authentication, the user must bring their card close to the reader connected to the printer. Self-registration can be enabled so that the user can do it from the device's panel. |
Add the printer for Authentication
Before you start
-
Make sure you carry out the Basic settings for NDD Print MF HP.
-
Make sure Configure authentication on the NDD Print Host.
-
Offline printers will only be configured when they are identified by NDD Print MF HP.
-
In Quick Actions, click on Add Printer
-
Click on Next
-
Enter the device data
-
Select check Compatibility with embedded solutions
-
If the printer is not accessible at the moment, you can click Yes to register it offline.
-
Click Next, the Authentication option will be automatically selected
-
Select the Future Smart version (FS3 or FS4/FS5) of your device
-
Select the device's control type:
|
Individual control NDD Print |

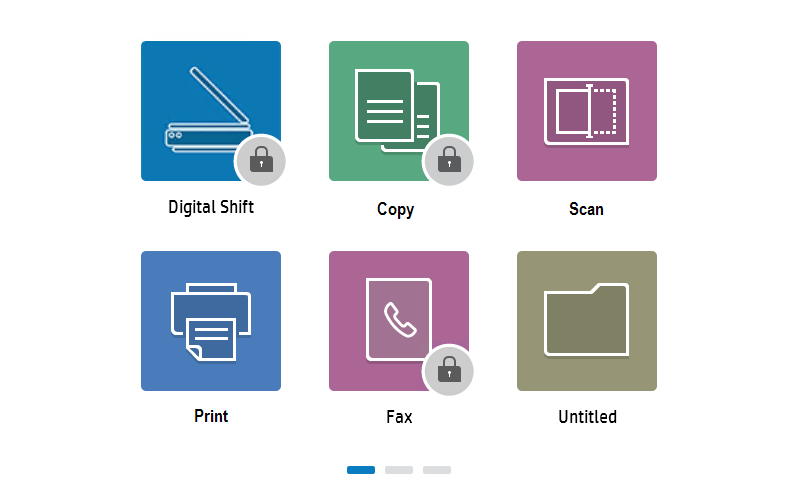

This profile gives you full control of the device, blocking all functions. We recommend using this profile when you have copy/scan policies.
|
|---|---|
|
Control by equipment |

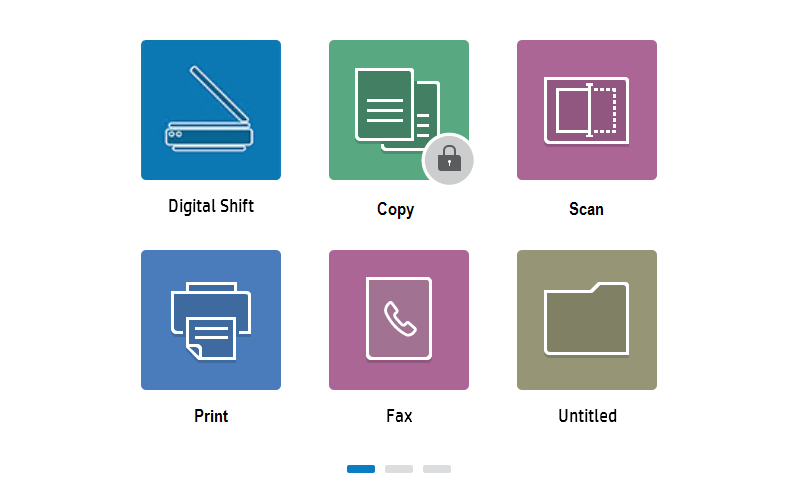

This profile allows the function lock to be configured as required. You must Configuring the Profile (access control) after adding the printer to NDD Print MF HP.
|
-
Wait for the wizard to finish adding the equipment and click Next and Finish
Create standard profiles and SNMP entries to optimize the addition of equipment.
