Installation Prerequisites NDD Print Client Canon

NDD Print Components

NDD Print Portal 360

NDD Print Host

NDD Print Releaser (in scenarios with Secure Release)

Required Configuration

  1. Access the printer's web page

  2. Click Settings/Registration and access Management Settings

  3. In Management Settings, select:

    • User Management > Department ID Management

  4. Under Department ID Management, change the option to Off

  5. Restart the printer so that the new configuration takes effect.

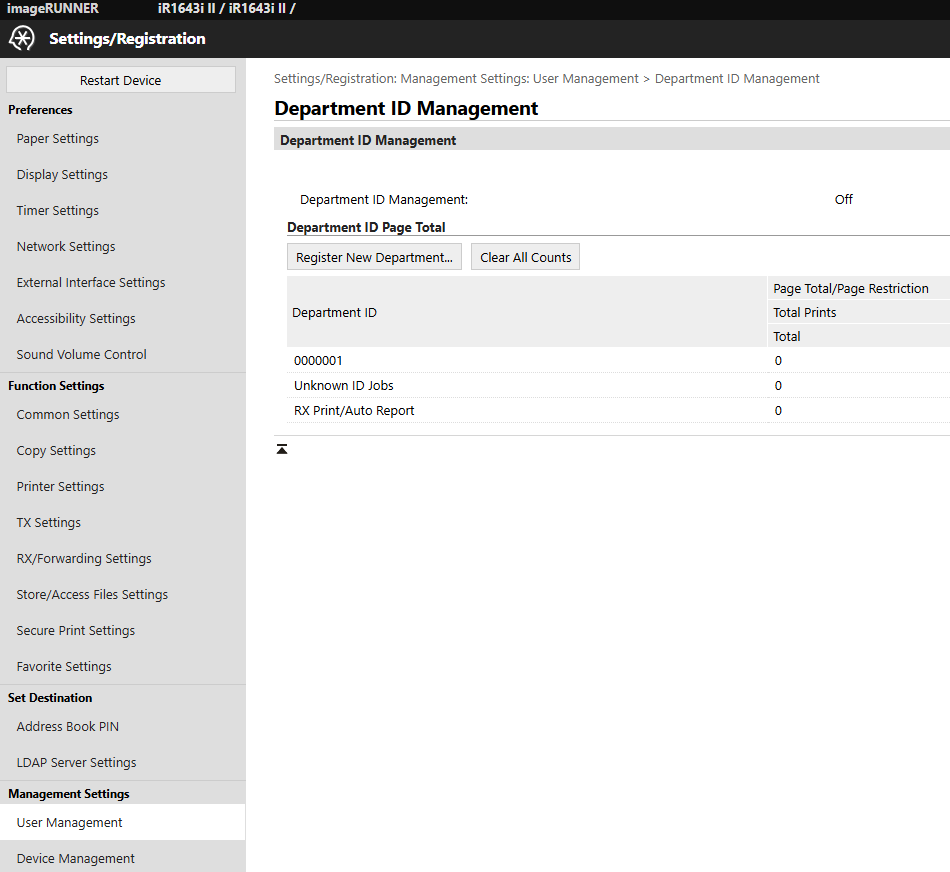

imagem (2).png

This configuration is required for the application to log in to the device correctly.

Environment

HTTPS (SSL) communication between NDD Print modules:

  • NDD Print Host - Port TCP 56569

  • NDD Print Releaser - Port TCP 56570

Communication with equipment:

  • HTTPS - Port TCP 443 (required)

  • SNMP - Port UDP 161 (required)

  • HTTP - Port TCP 80 (optional)

Communication between ECT and NDD NDD Print Client Canon - ALP

  • Port UDP 57571

  • Port UDP 57572

  • Port UDP 57579

ICMP protocol released

Communication using the Log Console tool - Port TCP 19001

Equipment

Check the compatible models in our Compatibility Guide.

ImageRunner Advance G3 Series

Certified card readers

Elatec TWN3

Elatec TWN4

Omnikey 5427

Omnikey  5428

DMZ

Last updated:
