Add printer

Add

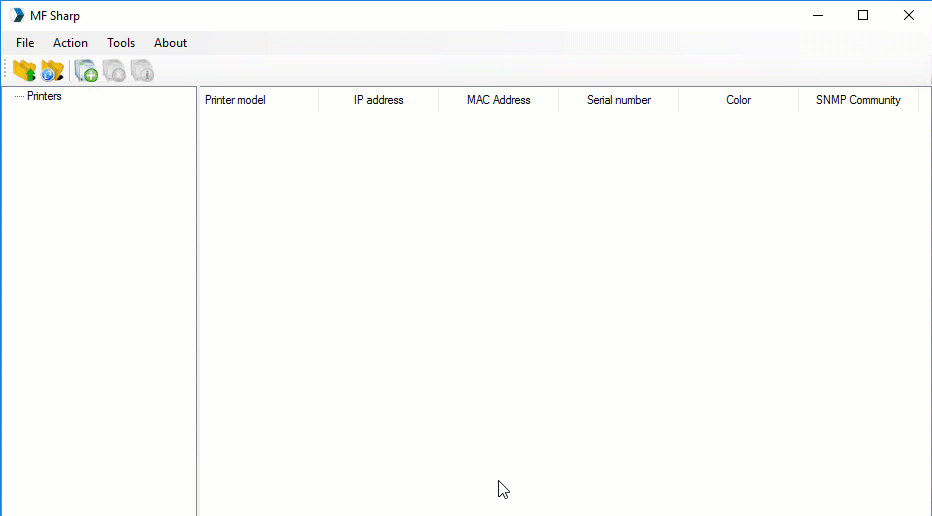

add impressora-20220523-125524.gif
add printer process.GIF

To add a printer > menu Action > option Add

  1. The wizard interface for adding printer will be displayed. Click

Next to proceed;

  1. Enter the equipment data:

  • IP Address or Printer Name;

  • User Administration;

  • User Administration Password;

  • SNMP Community: select the configured SNMP input (default: Public).

  1. If you want to automatically restart the printer after adding the printer in the MF Sharp, select the "

Would you like to restart the machine at the end of the process?";

  1. From here, we'll bring some configuration examples according to the scenarios:

Authentication, Accounting, Secure Release and Control Copy

  • Enable accounting: check this option for NDD Print MF Sharp to monitor Print, Copy, Fax and Scan jobs as configured in the Monitoring tab.

  • Check the compatibility with embedded solutions: check this option for the NDD Print MF Sharp to validate if the equipment supports the Releaser, Authentication and Control Copy;

Click Next.

On the selection screen of the options available for the equipment, check the following options:

  • Authentication;

  • Releaser Documents (Secure document release);

  • Control Copy.

Authentication and Secure Release

  • Check the compatibility with embedded solutions: check this option for the NDD Print MF Sharp to validate if the equipment supports the Releaser and Authentication;

Click Next.

On the selection screen of the options available for the equipment, check the following options:

  • Authentication;

  • Releaser Documents (Secure document release).

Accounting only

  • Enable accounting: check this option for NDD Print MF Sharp to monitor Print, Copy, Fax and Scan jobs as configured in the Monitoring tab.

  1. After configuring the settings click

Next;

  1. The equipment registration interface will be shown, displaying the equipment addition progress (Action > Status > Message) along with its settings. Wait a few moments for the process to complete;

  1. Click

Finish to finish adding equipment.

Remove

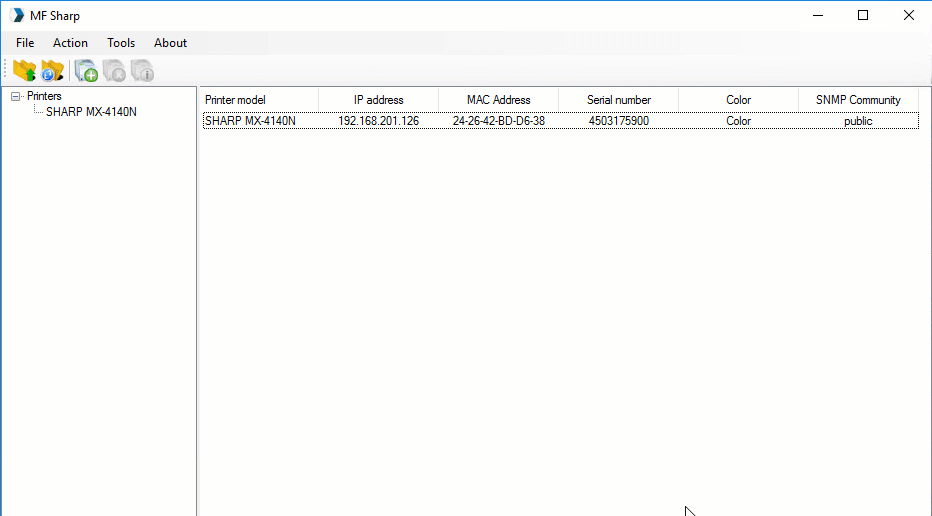

remover impresssora-20220523-125756.gif
remove process.GIF

To remove a printer > select the printer(s) > menu Action > option Remove

  • If you set up the use of the NDD Print Client, follow the wizard steps by clicking Next;

  • Wait while the settings are removed from each printer.
