Proxy configuration

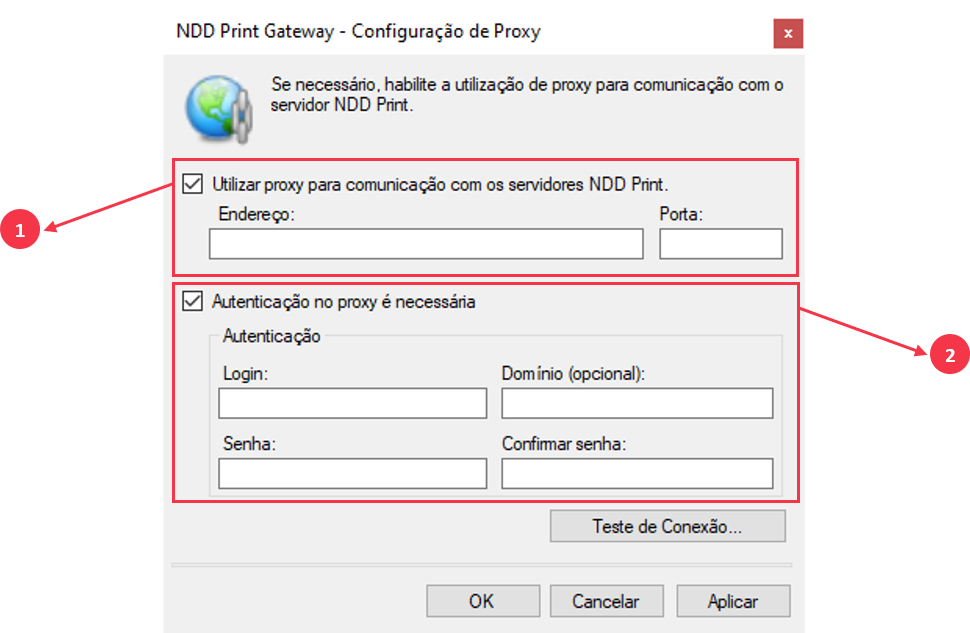

Clicking on the Proxy Configuration option, you will find the following configuration items:


  1. Use Proxy to communicate with NDD Print servers:

    1. Address: Address (IP or Hostname) of the Proxy server;

    2. Port: Port used for communication with the Proxy server;

  2. Proxy authentication is required

    1. Login: User login to perform authentication;

    2. Domain (optional): Authentication domain;

    3. Password: User password configured;

    4. Confirm password: Confirm the configured user password;

    5. Connection test: Tests communication with the Proxy server.

IMPORTANT

This option must be enable only if the Proxy needs authentication to connect to the internet.

To configure the Proxy, follow these steps:

  1. Check the Use Proxy to communicate with NDD Print servers;

  2. Enter the Proxy server address and port;

  3. If authentication on the Proxy server is required, check the Authentication on the Proxy is required and fill in the data;

    1. Login: User login to perform authentication;;

    2. Domain (optional): Authentication domain;

    3. Password: User password configured;

    4. Confirm password: Confirm the configured user password;

  4. Click Apply to complete the configuration;

  5. Use the Test connection button so that the NDD Print Gateway performs a communication test with the Proxy server.
